Optical Comparators

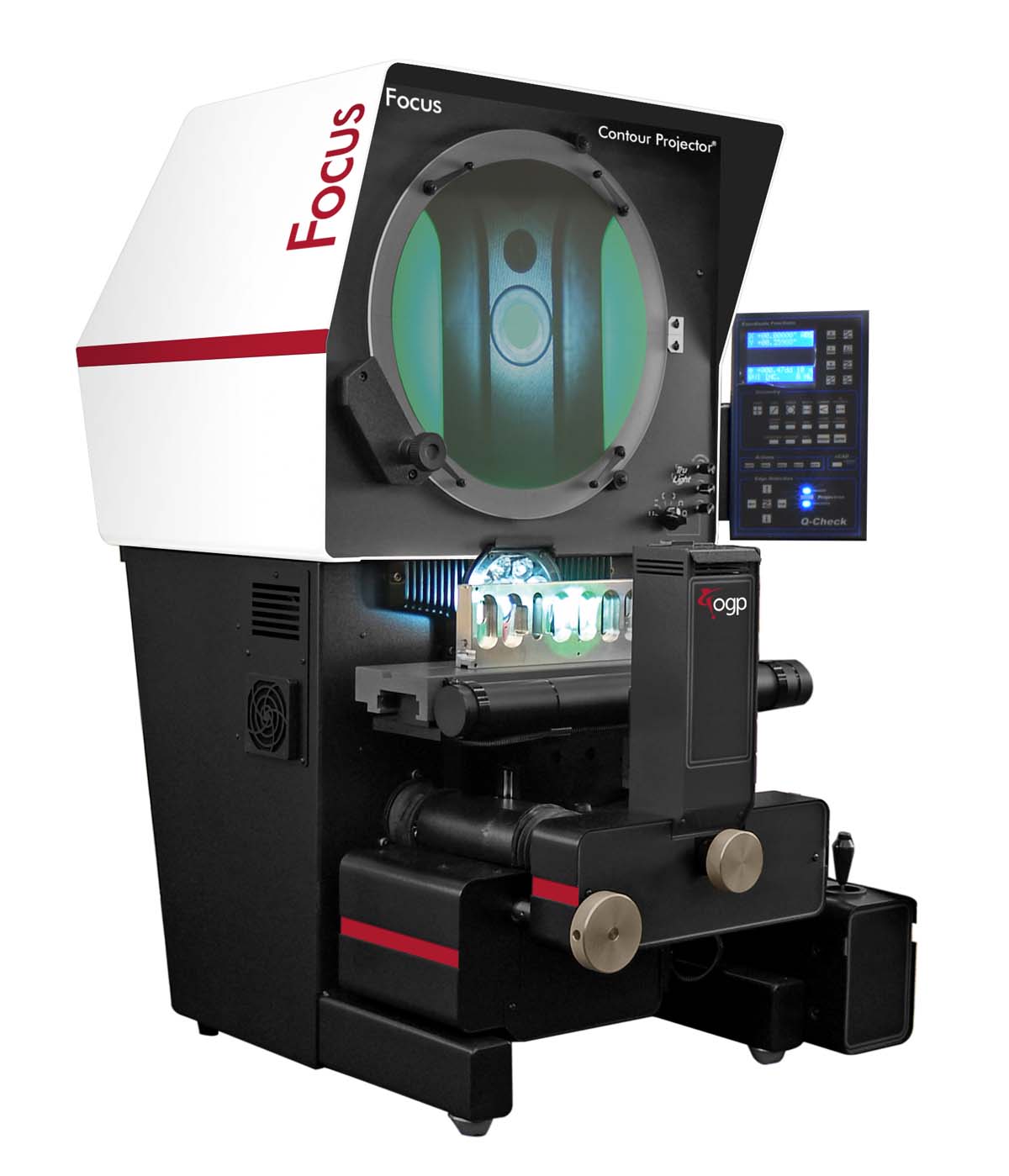

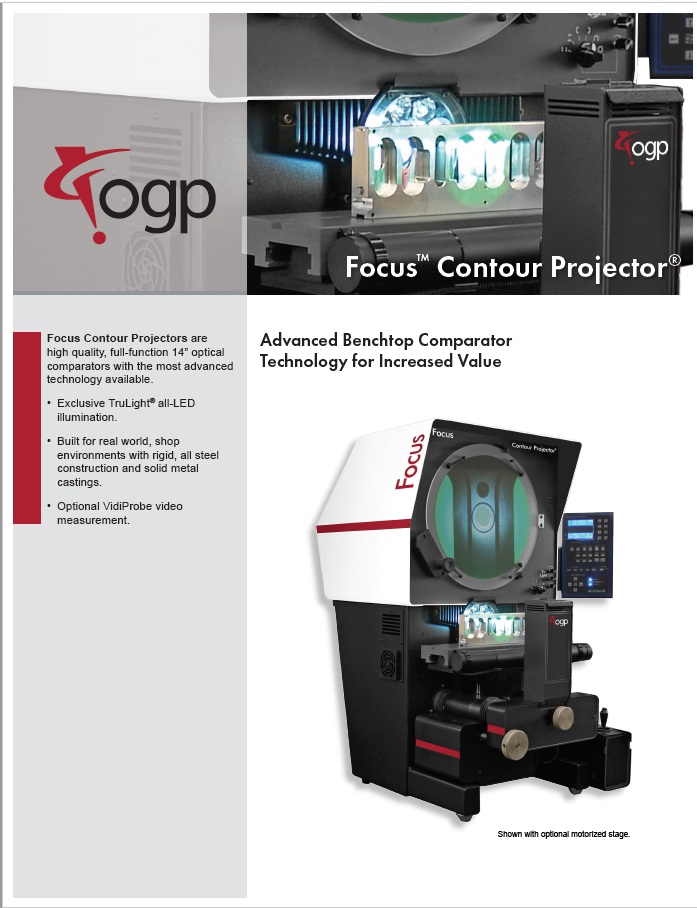

Focus
XY TRAVEL
12″ x 5″
OPTICS
Lens Options: 10X, 20X, 31.25X, 50X, 100X
ILLUMINATION
Profile Light
Coaxial Light
Oblique Surface Illumination
SCREEN
16″ diameter, 14″ viewable ground glass screen, with integral hood, 90 degree centerlines and clips for mounting overlay charts
WORKTABLE
Manual, hard coat anodized aluminum with dovetail slot and +6.5 degree helix angle range
Click to Download Brochure (PDF)

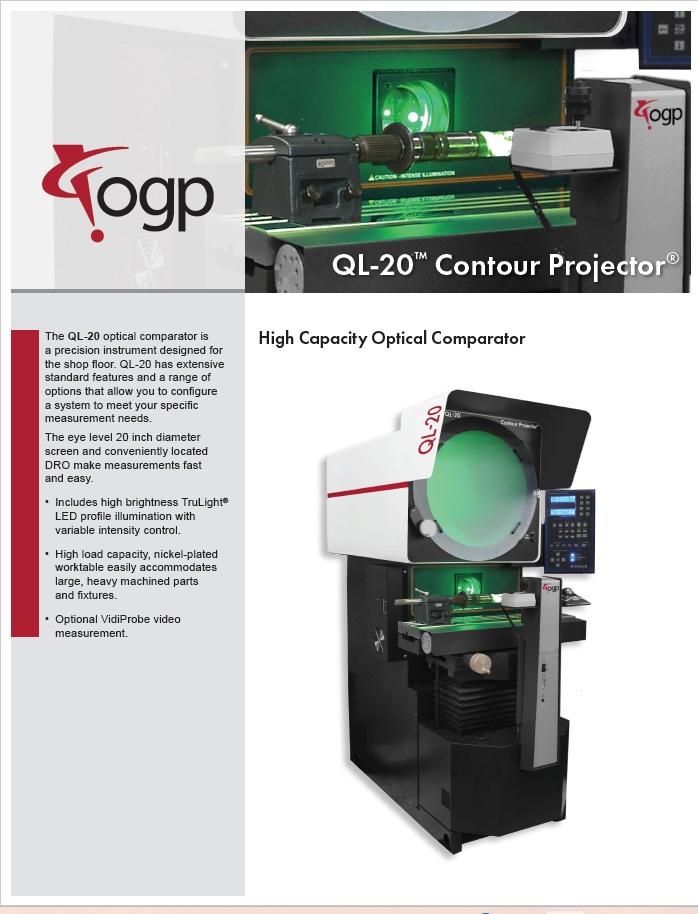

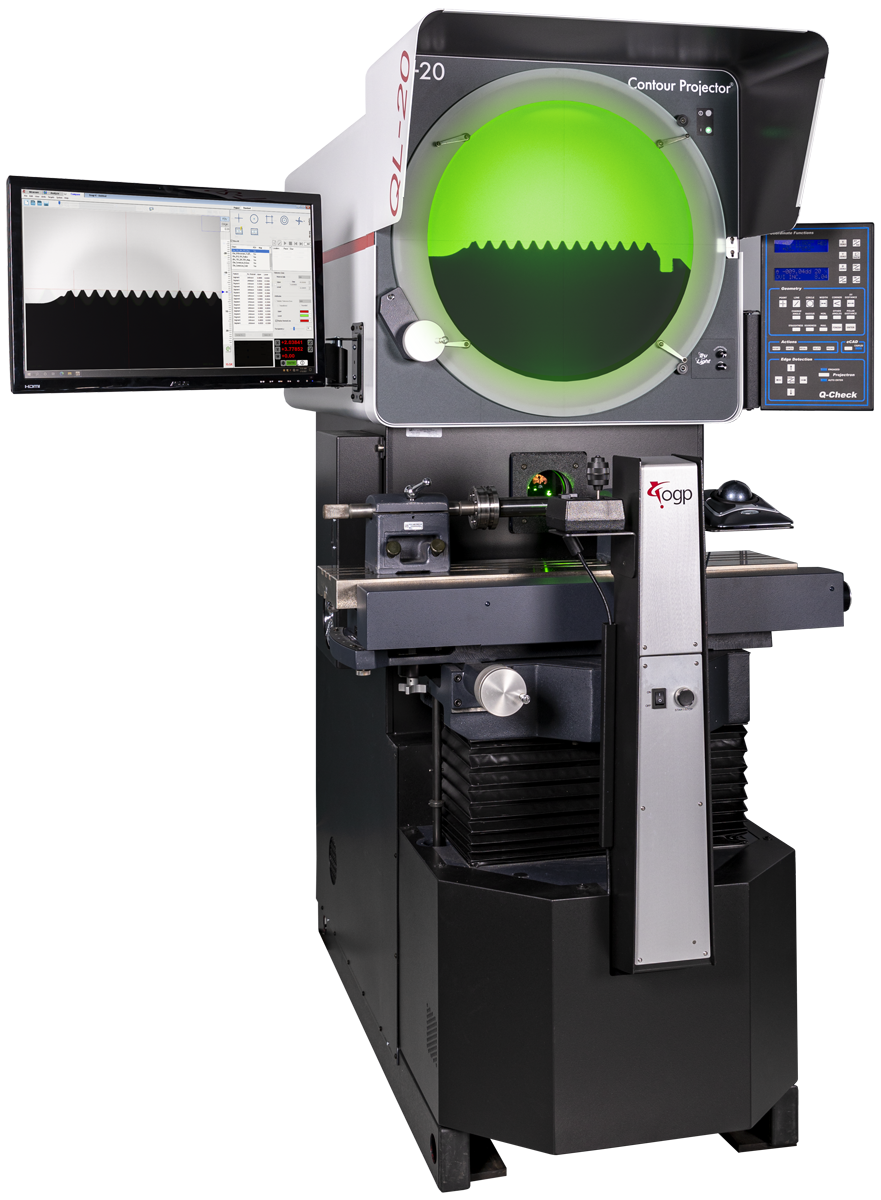

QL-20
XY TRAVEL
15″ x 9″
OPTICS
Lens Options: 10X, 20X, 31.25X, 50X, 62.5X, 100X
ILLUMINATION
Profile Light
SCREEN
16″ diameter ground glass screen, with 20″ viewing area, integral hood, 90 degree centerlines and clips for mounting standard overlay charts
WORKTABLE
Motorized, heavy-duty nickel cast-iron with dovetail slot
Click to Download Brochure (PDF)

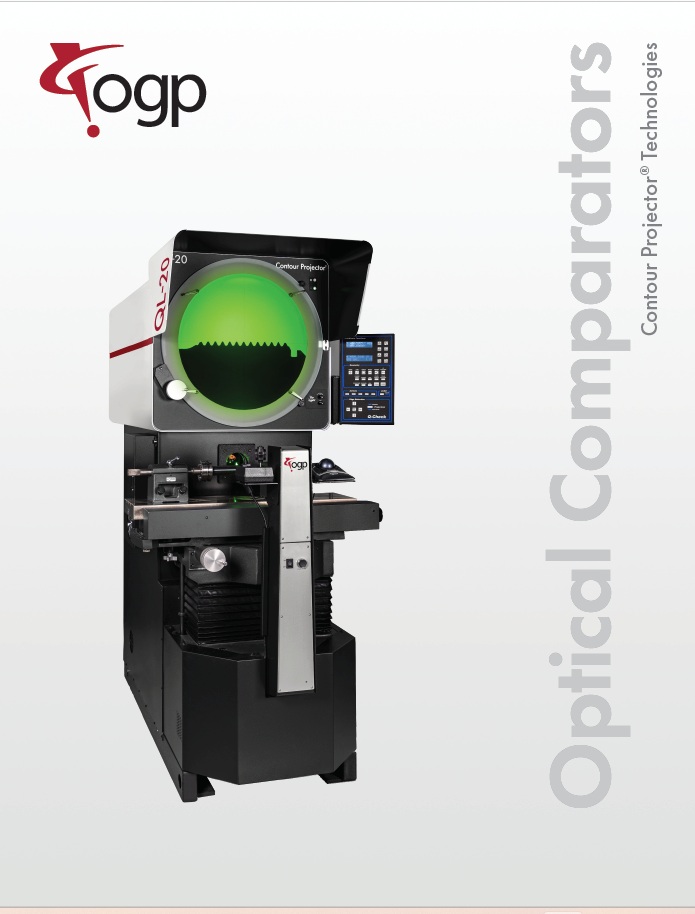

Brochure for all OGP Comparators
Click to Download Brochure (PDF)
