Ram Optical



The QVI Ram Optical product line offers excellent non-contact solutions at very affordable prices.

Ram Optical Instrumentation

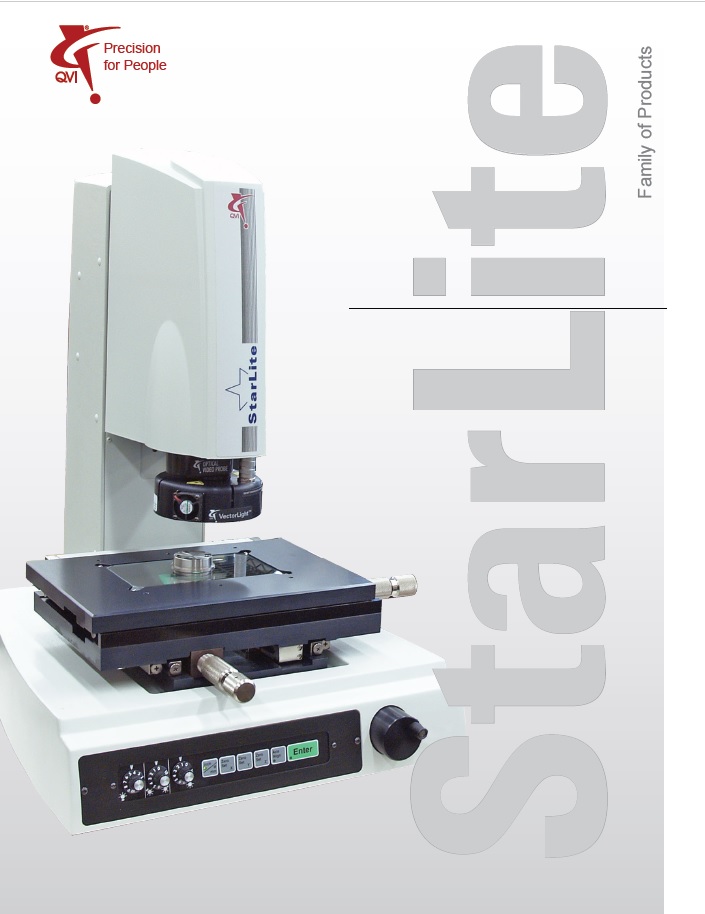

Starlite Manual Systems 150-300

Starlite Manual Systems 150-300

Same features as the CNC machines, but with a manual stage.
Full edge detection
Zoom lens
Sizes from 3” x 6” to 12” x 12”

Starlite Manual Systems 150-300

Click on Brochure to Download

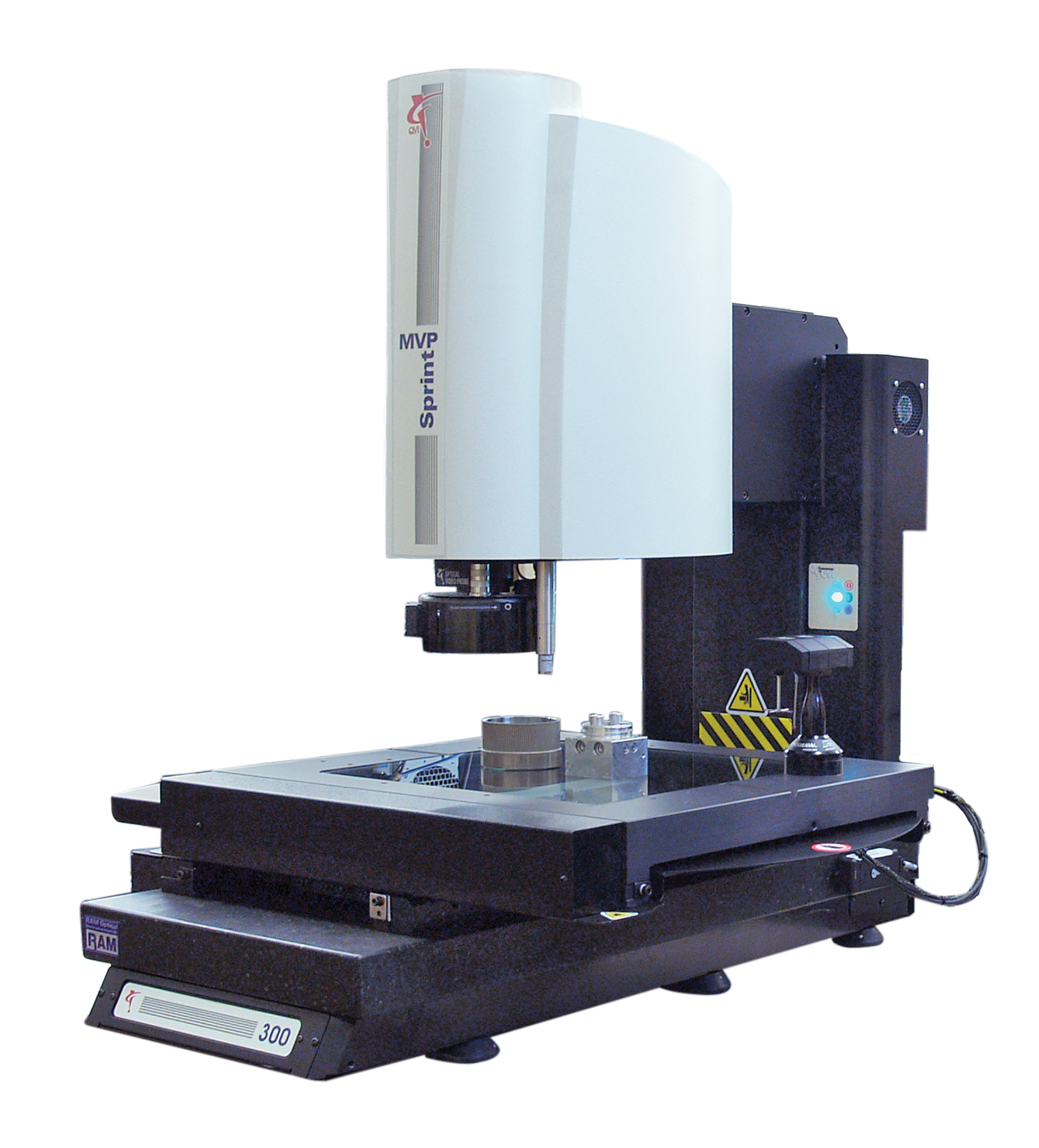

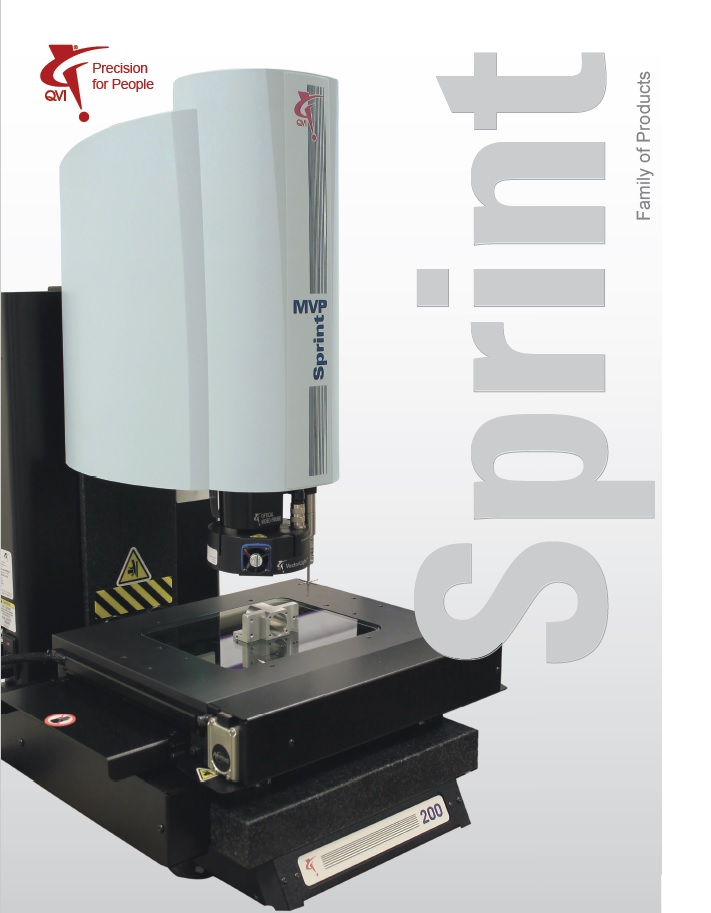

Sprint MVP 200-300

Sprint MVP 200-300

Granite base and column, built to last and affordable
Fully programmable, CNC.
Full edge detection
Zoom lens
Optional laser
Optional touch probe
Sizes range from 6”x 8” to 12” X 12”

Sprint MVP 200-300

Click on Brochure to Download

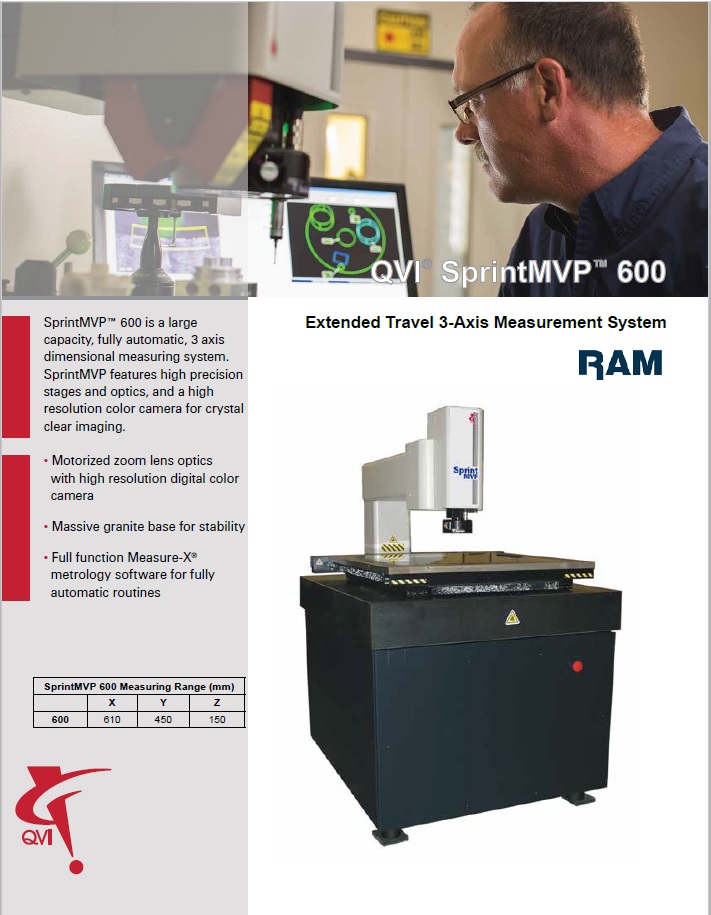

Sprint MVP 400-600

Sprint MVP 400-600

18” x 18” and 18” x 24”
Fully programmable, CNC.
Full edge detection
Zoom lens
Optional laser
Optional touch probe
.

Sprint MVP 400-600

Click on Brochure to Download

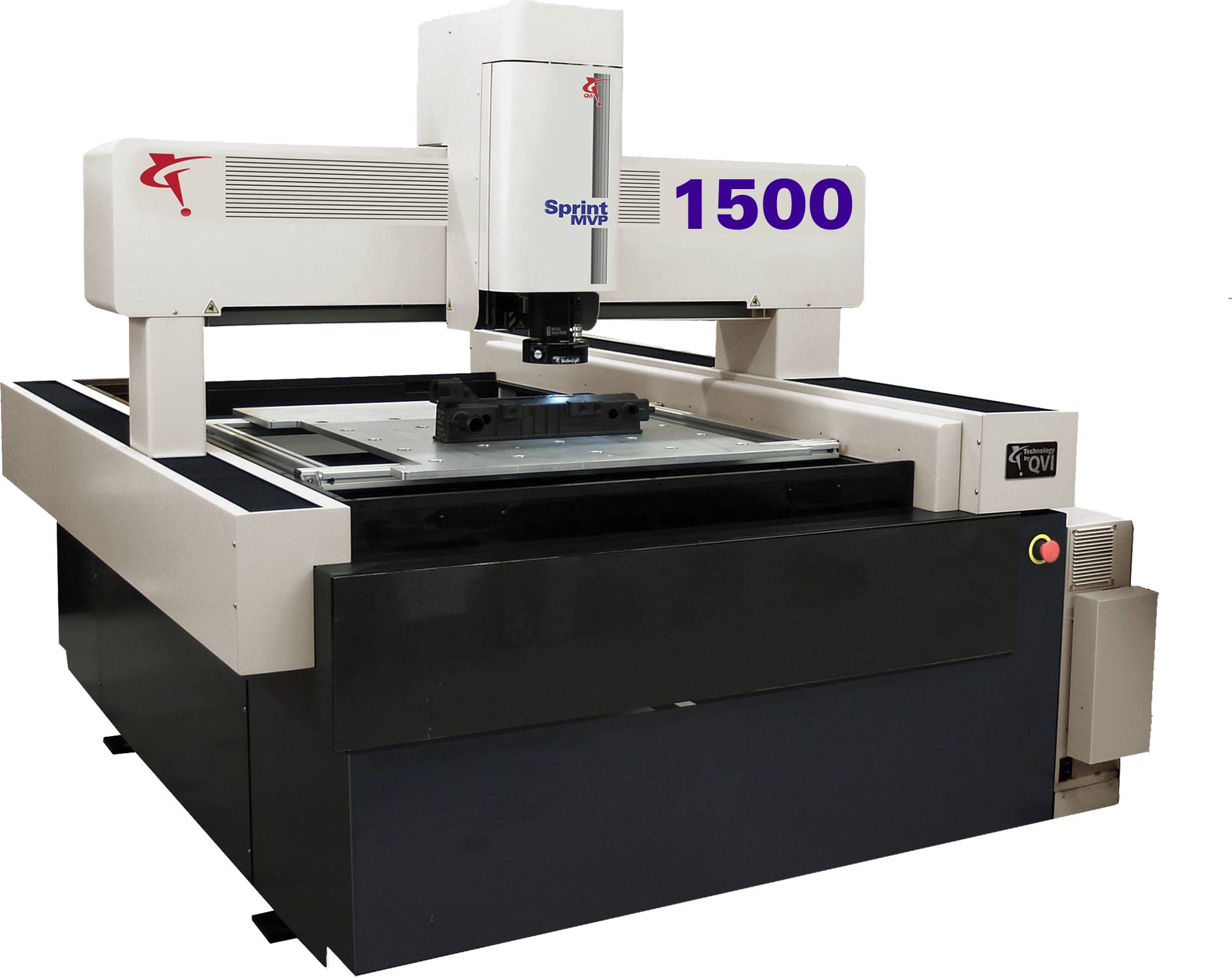

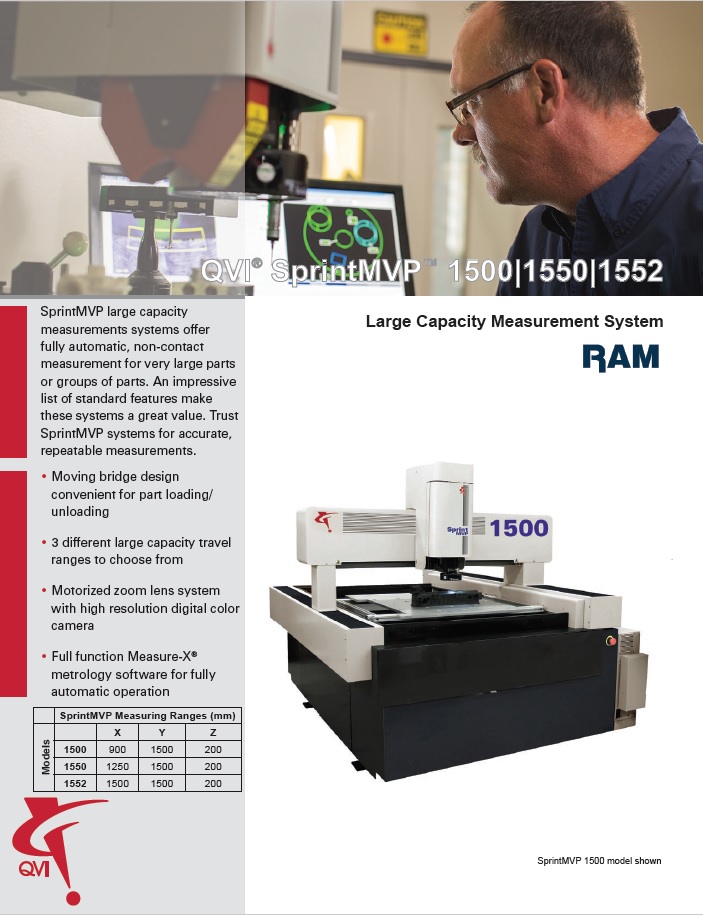

Sprint MVP 1500-1552

Sprint MVP 1500-1552

Up to 60” x80”
Measurement of large parts or multiple parts.
Fully programmable, CNC.
Full edge detection
Zoom lens
Optional laser
Optional touch probe

Sprint MVP 1500-1552

Click on Brochure to Download

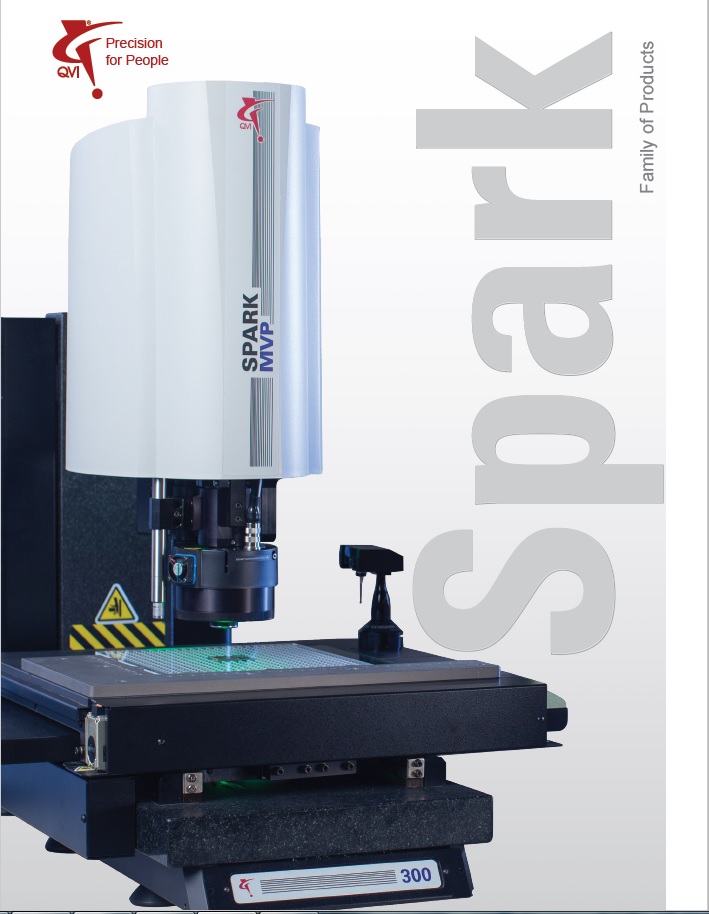

Spark Series Machines

Spark Series Machine

Based upon the Sprint series machine only with objective lenses for clearer image
Through the Lens Laser (TTL)
Fully programmable, CNC.
Full edge detection
Optional touch probe
6” x 8” to 12” x 12”
.

Spark Series Machines

Click on Brochure to Download

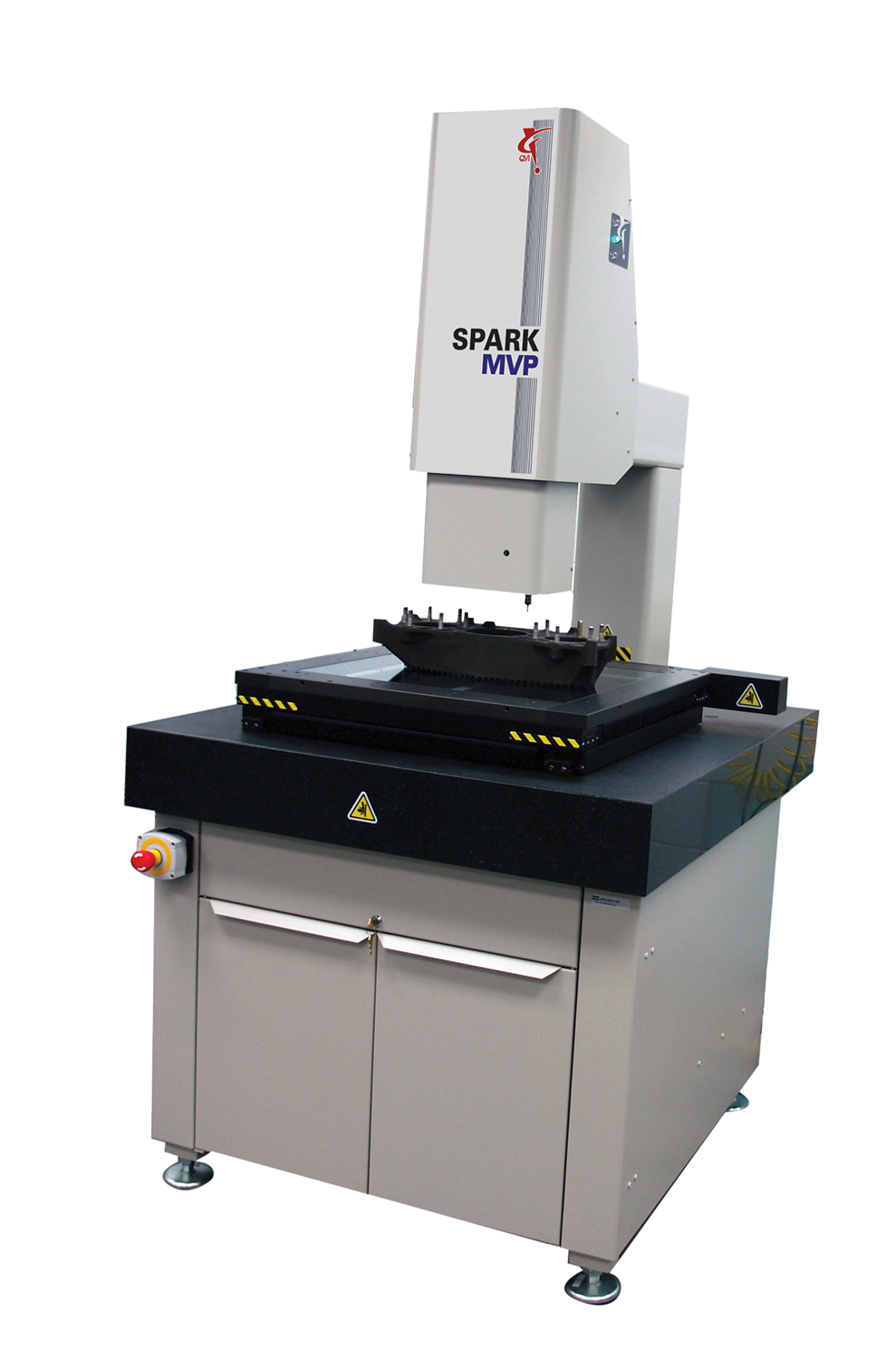

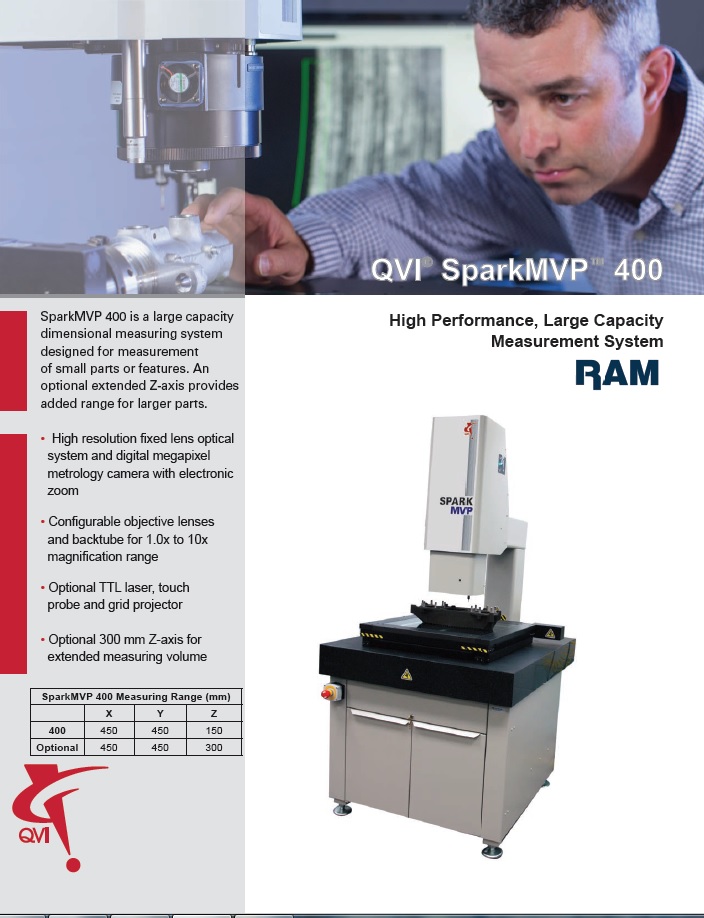

Spark Series Machines Larger Stage

Spark Series Machine-Larger Stage

Same as the smaller Spark, but with a larger Stage of 18” x 18”
Objective lenses for clearer image
Through the lens laser (TTL)
And like the Sprint, it is
Fully programmable, CNC.
Full edge detection
Optional touch probe

Spark Series Machines Larger Stage

Click on Brochure to Download

Snap Digital Measuring Technology



Ram Optical Snap measurement systems are designed to measure small, intricate parts right on the manufacturing floor. All SNAP systems are simple to use. With automatic part ID and AutoCorrelate, simply place a part on the SNAP and press GO. Single parts, multiple parts – even a mixture of different parts – are all measured automatically.

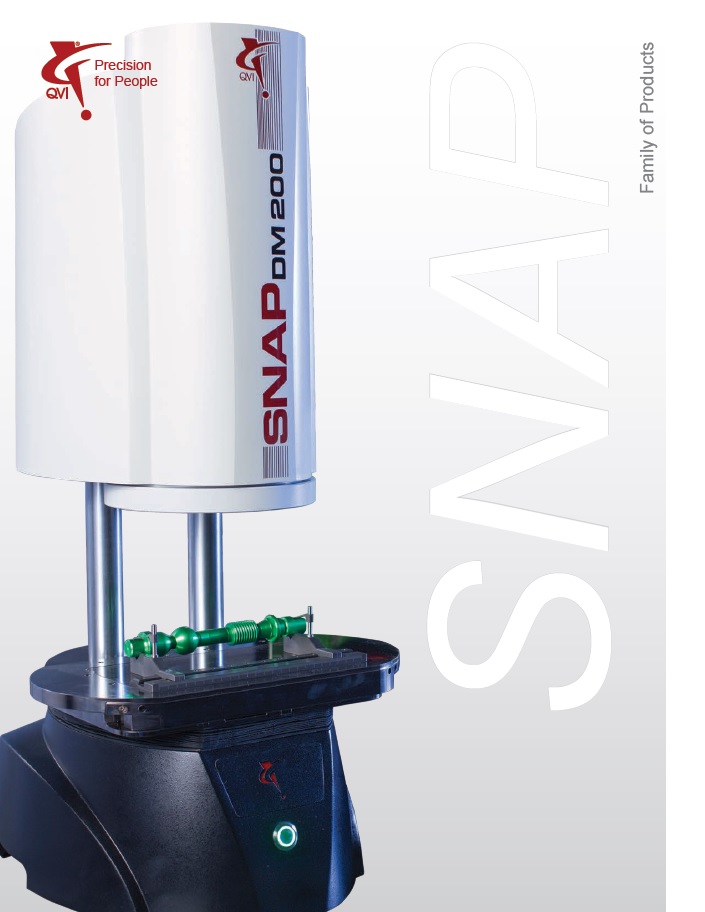

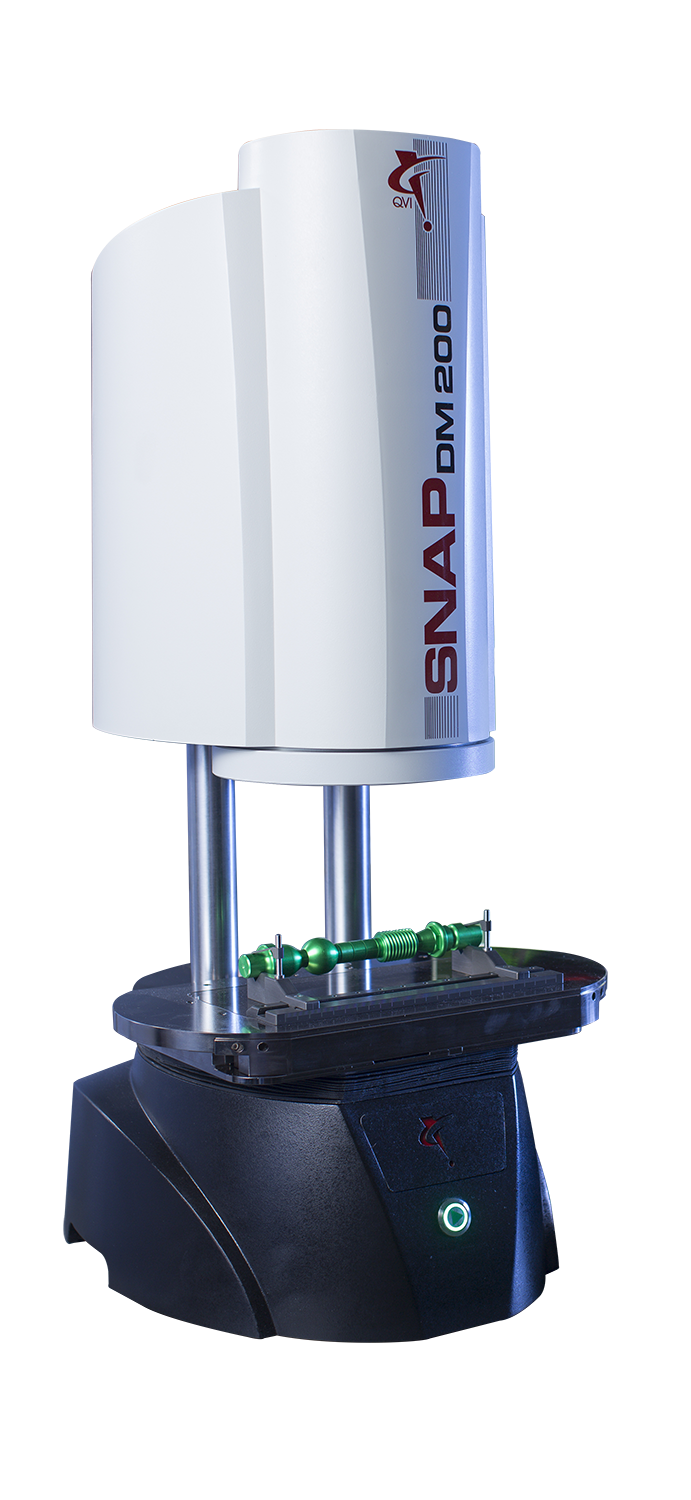

Snap 200 Series

Snap 200 Series

For smaller precision parts.
.

Snap 200 Series

Click on Brochure to Download

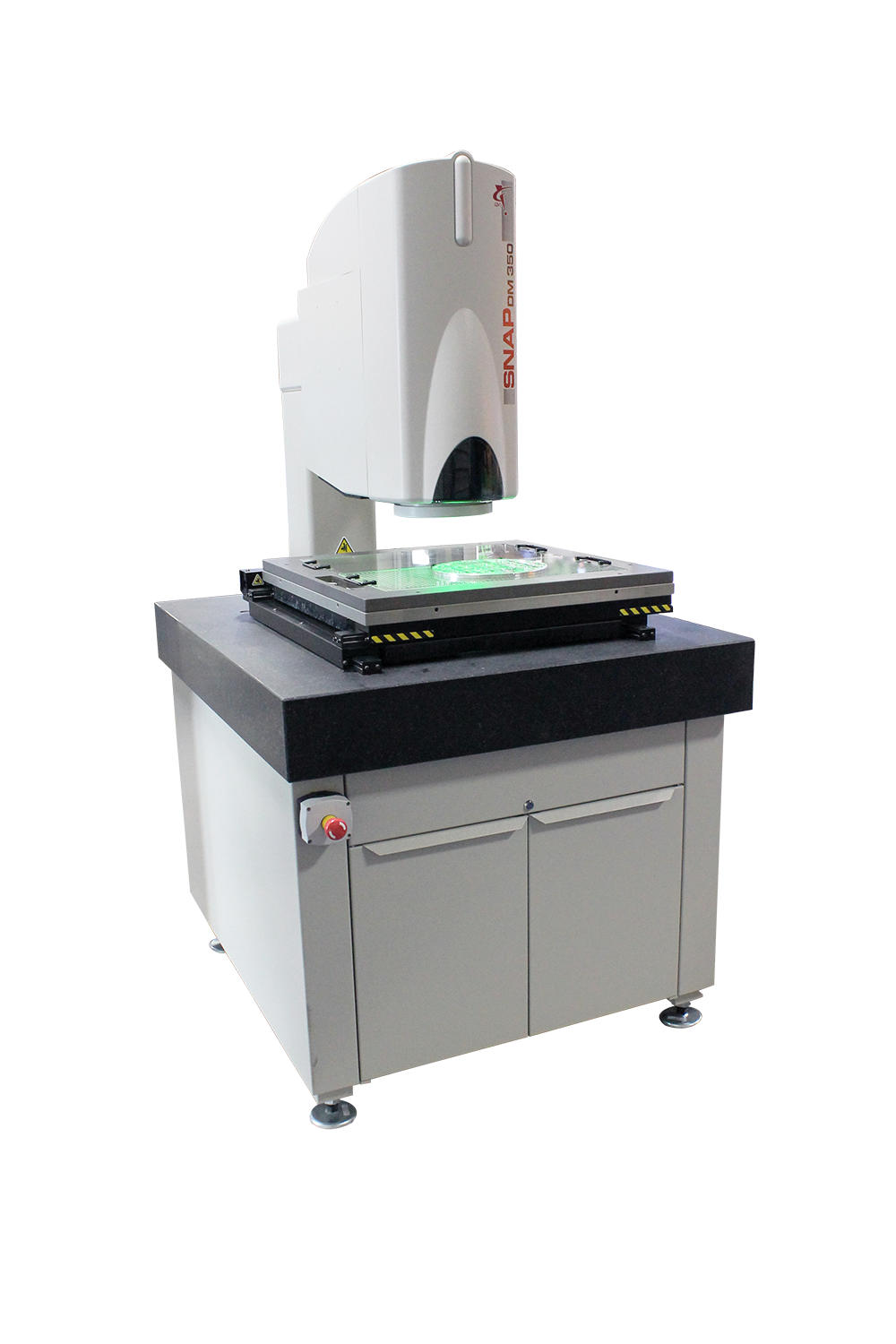

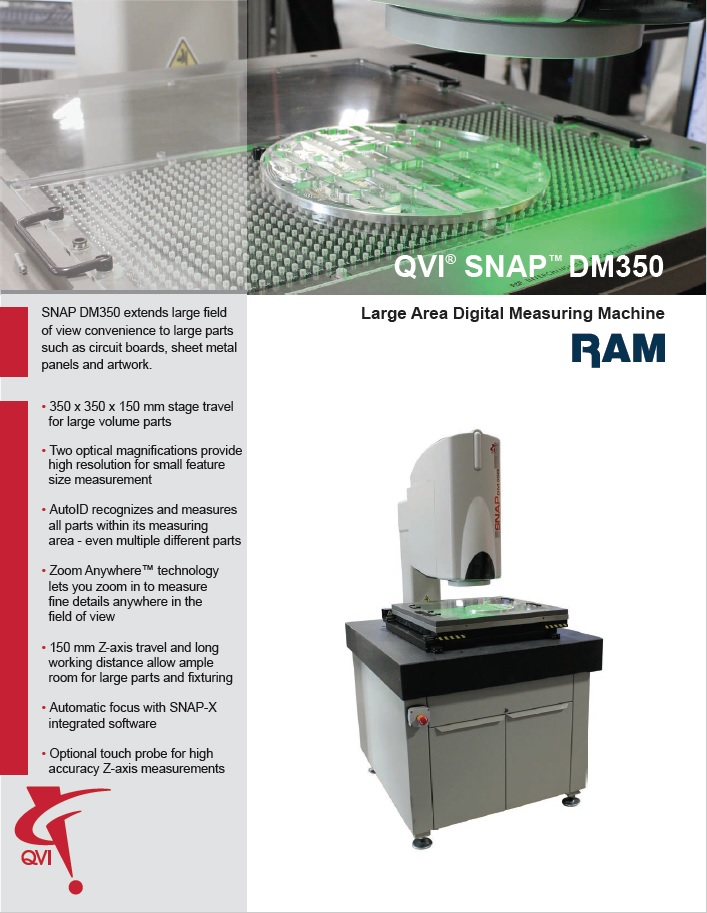

Snap 300 Series

Snap 300 Series

Extends large field of view, convenience to large parts such as circuit boards,sheet metal parts, and artwork.
.

Snap 300 Series

Click on Brochure to Download

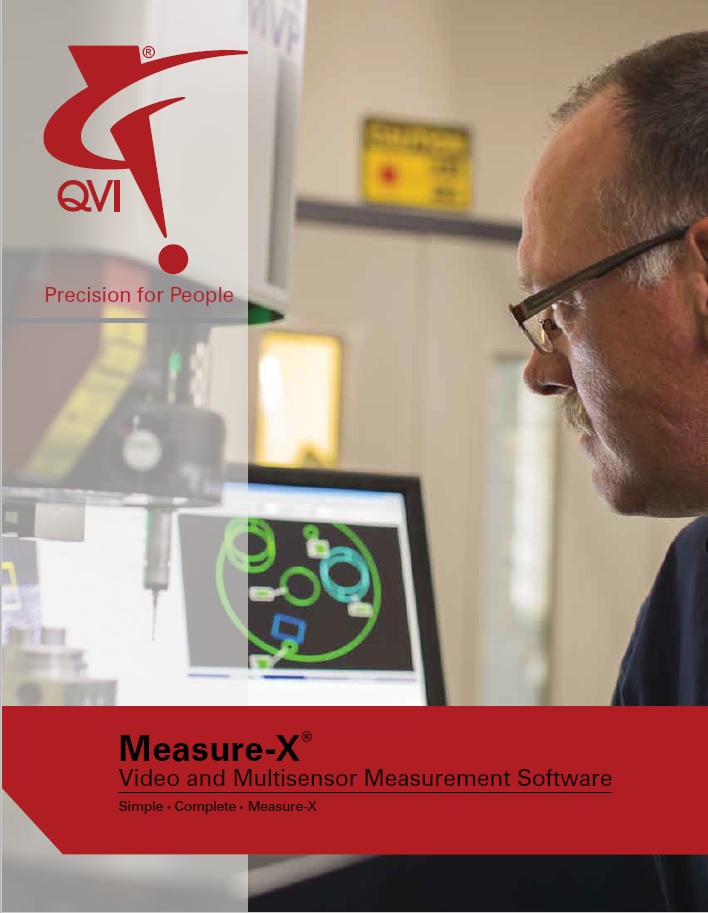

Measure-X Software



Easy to use intuitive software with powerful capabilities and with the Dual Monitor, everything is displayed all on the two monitors to view the graphics, video screen, as well as all the software measurement icons,

Also features:

  • CAD import
  • DRS laser support
  • Automatic probe path
  • Oversize image window for easier measurement viewing
  • Large, color coded, easily accessible icons
  • 3D feature capability for Touch Probe equipped systems
  • Large model window
  • Editable program listing
  • Interactive routine listing corresponds with model and data windows
  • Three standard user interfaces

Measure X Software

Click on Brochure to Download

Accessories to Add More Capabilities to Your System

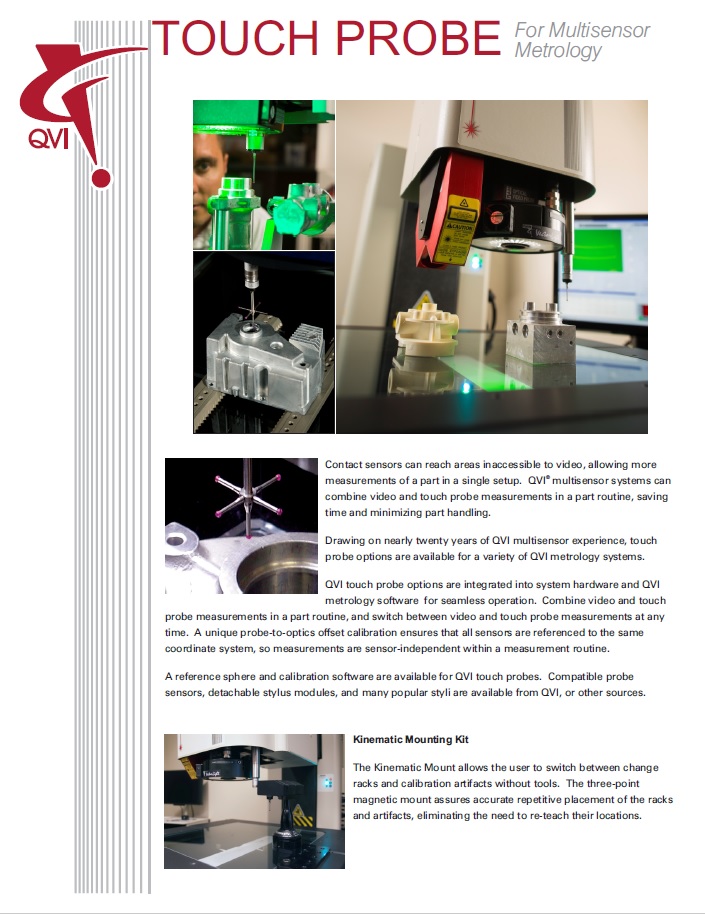

Touch Probe

Measure those features that a video camera cannot see.
.

Touch Probe

Click on Brochure to Download

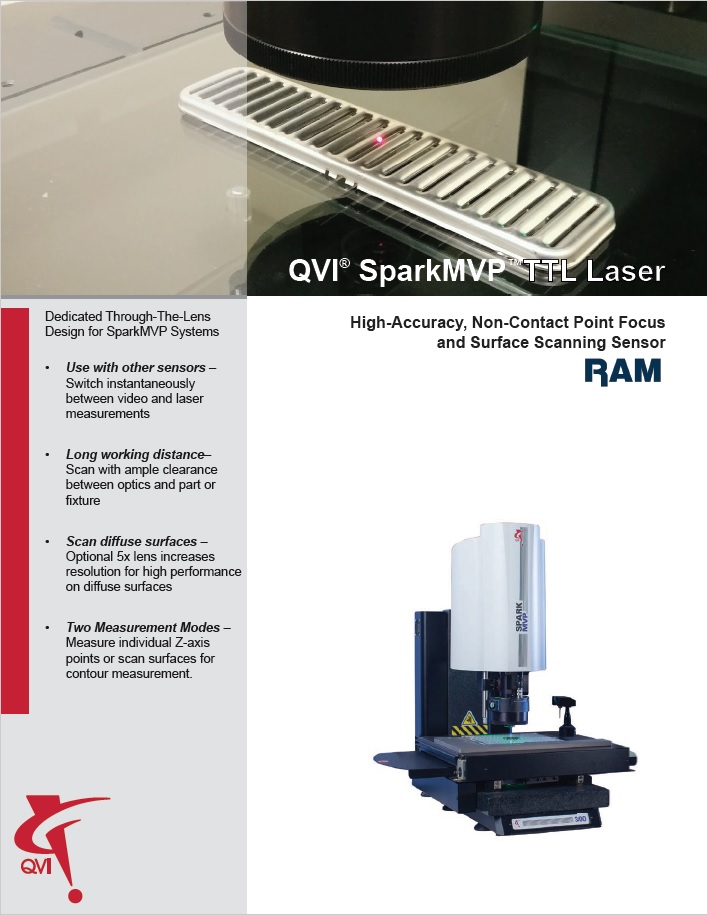

TTL Laser

Capture data for surface analysis and high data point collection.
.

TTL Laser

Click on Brochure to Download

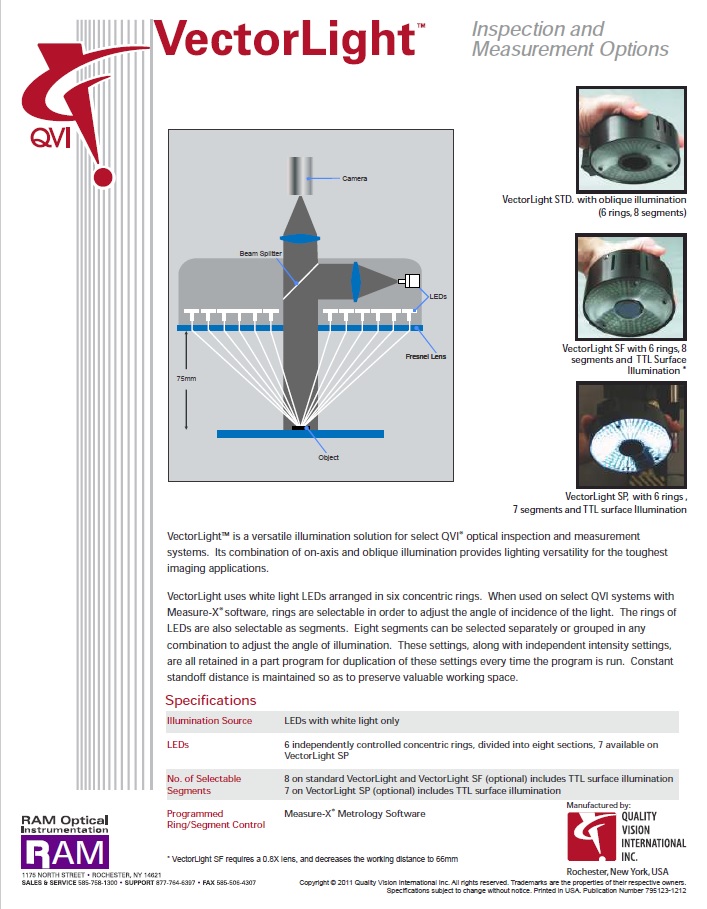

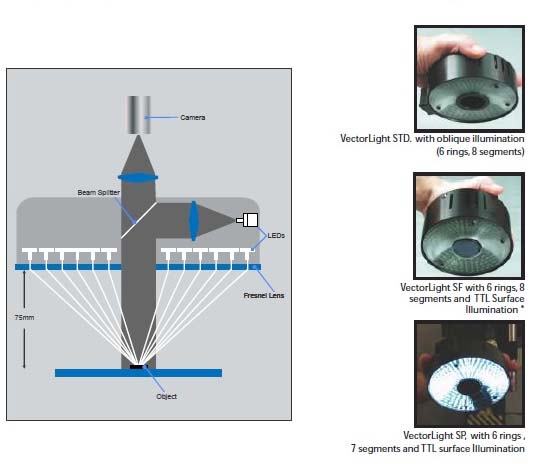

Vector Light



Most important Accessory
Allows you to illuminate features so they can be measured.
Programmable sectors as well as individual rings

Vector Light

Vector Light
