ZEISS Optical Metrology Products

Zeiss

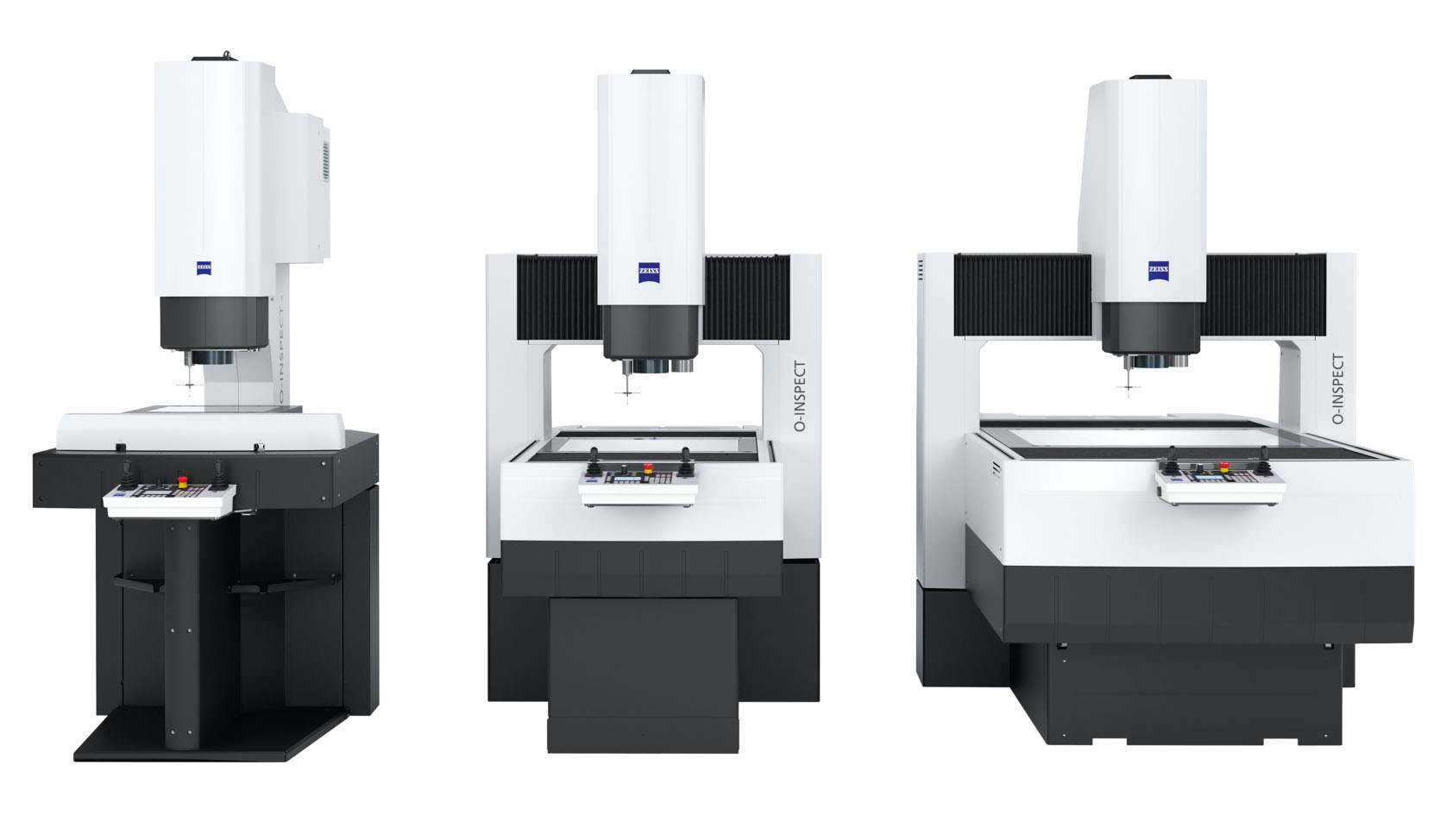

ZEISS O-Inspect

ZEISS O-INSPECT

Full 3-D CMM Scanning machines with a camera for non-contact measurement. The best of both worlds.

  • Works with 3-D Solid CAD Models
  • Full 3-D CMM Measurement
  • Full Scanning Touch Probe
  • Telecentric Zoom Lens
  • Probe Rack
  • Calibration Sphere
  • Blue and Red Lighting to pickup dark and clear parts
  • White Light Sensor Option
  • Rotary Table Option

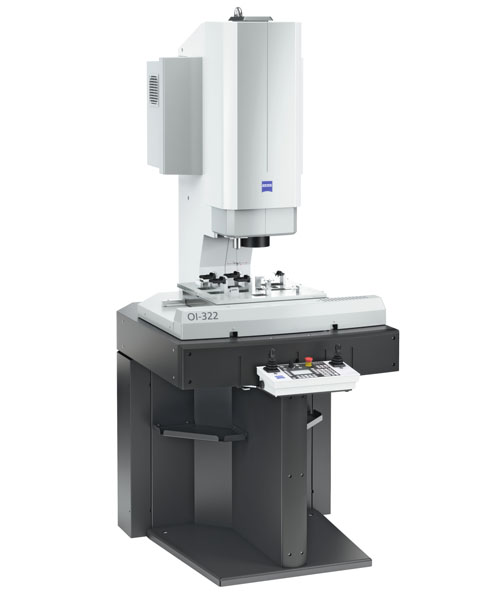

O-Inspect 322

O-INSPECT 322
12” X 8” X 8”

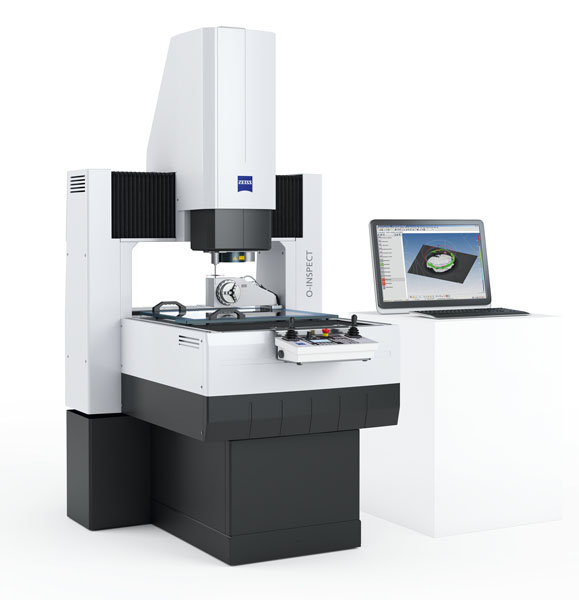

O-Inspect 543

O-INSPECT 543
20” X 16” X 12”

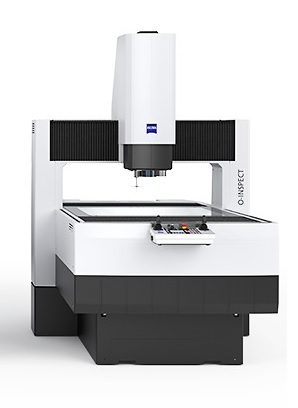

O-Inspect 863

O-INSPECT 863
32” X 24” X 12”

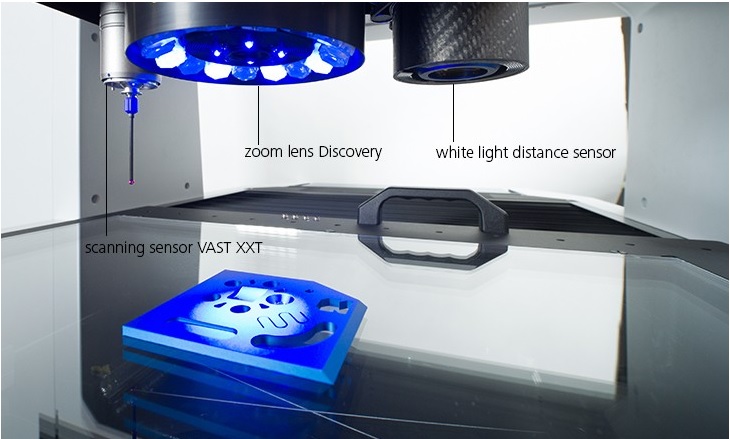

Lenses

Zeiss O-Inspect Brochure

Click to Download Brochure

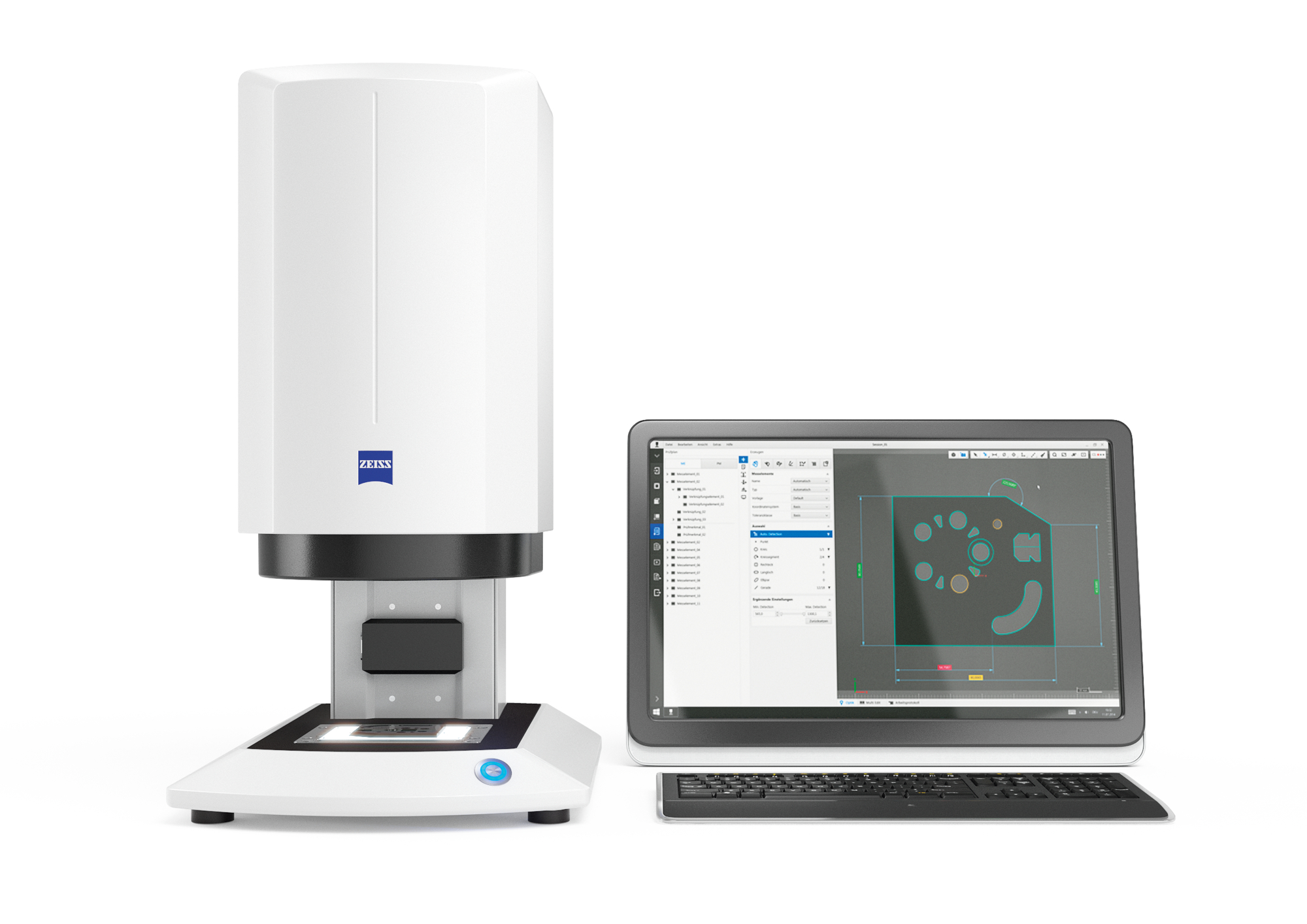

ZEISS O-Select

ZEISS O-SELECT

  • Put the part on the stage, push a button, done!
  • Automatically Measures Features of your part
  • Telecentric Optics
  • Automatically Selects the Optimal Lighting
  • Bottom Light, Top Light, On-Axis Light.
  • Auto Focus
  • Comes with a PC for easy communication, reporting, & SPC

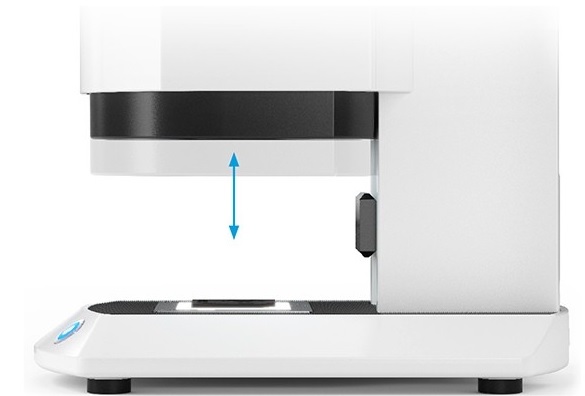

Auto Focus Feature

Auto Focus Feature

Zeiss O-Select Brochure

Click to Download Brochure
